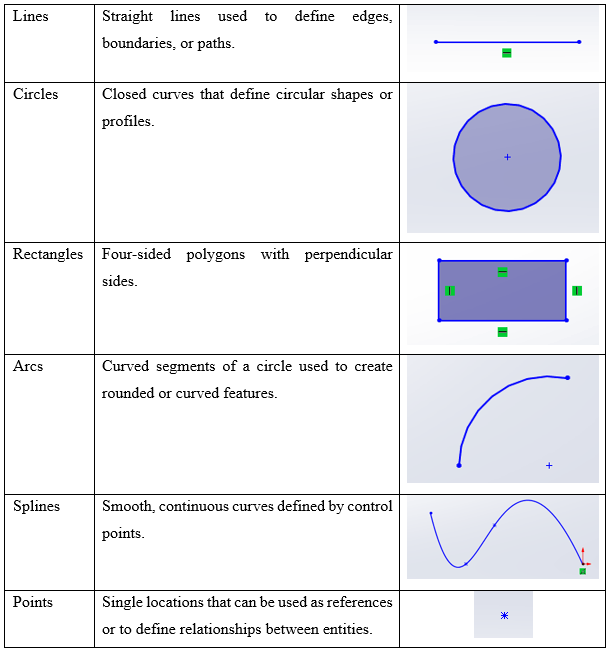

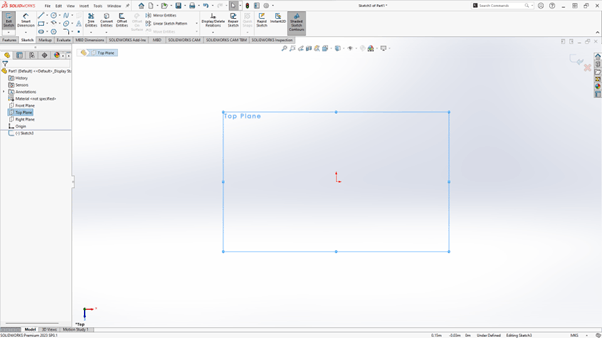

Sketch entities serve as the core components of a sketch. These are the geometric shapes and components that you generate and modify within the drawing environment. Commonly utilized sketch entities in SolidWorks encompass.
The sketch entities serve as the basis of your design and may be merged and adjusted to generate more intricate forms and features.
Geometric constraints are regulations that may be implemented to sketch things in order to govern their interactions and behaviors.
These limitations guarantee that the drawing retains its intended form and functionality, even when altered.

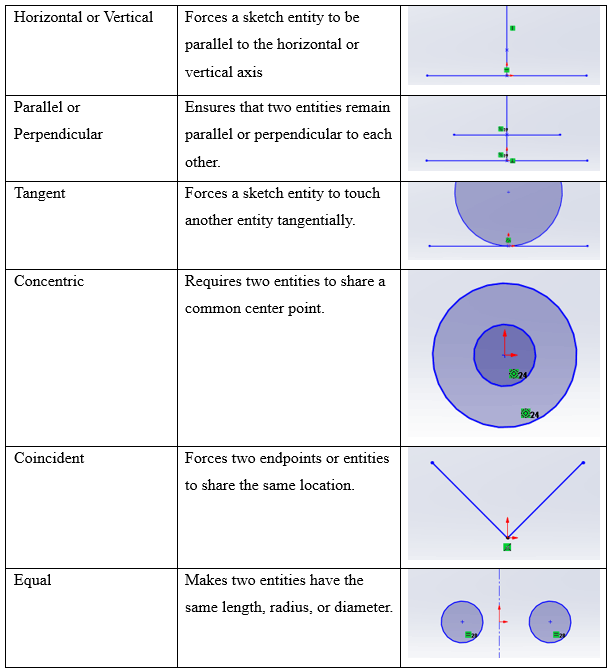

SolidWorks offers a range of geometric limitations that may be applied to sketch elements.
By implementing these geometric restrictions, you establish the connections and characteristics of the sketch elements. The restrictions guarantee the stability and predictable behaviour of the drawing when alterations or adjustments are made.
To apply a constraint, simply select the entities that you want to constrain and then choose the type of constraint at the property manager under ‘add relation’. Meanwhile, to delete a constrain, simply click on the constrain you want to remove and then hit the ‘delete’ key.
Dimensions enable the specification of the size, position, and other numerical attributes of sketch elements. Their role involves establishing the exact measures and placements inside the drawing, guaranteeing precision and uniformity.

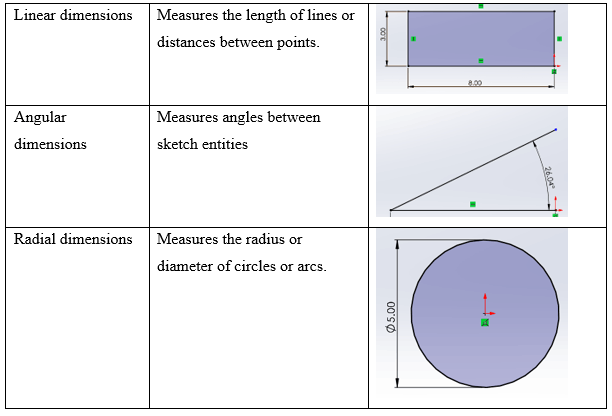

The Dimension tool in SolidWorks allows users to include measurements into drawing elements. Upon selecting a sketch entity, the Dimension tool has many possibilities to set diverse sorts of dimensions
To incorporate an additional dimension, you must first choose the Smart Dimension tool and then click on the entities that you want to add the dimension. SolidWorks presents the dimension value, which may be altered if necessary.
Quick tips when dimensioning your sketch, you can use the ‘fully define sketch’ function to add dimension to your sketch.

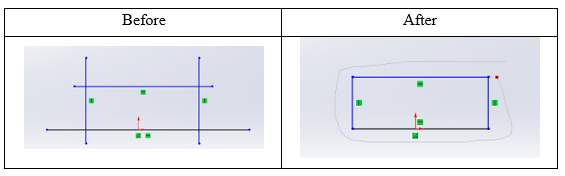

Step 1: Activate the Trim tool. It can be found in the Sketch toolbar or the Command Manager under the Modify section.
Step 2: Select the sketch entities you want to trim while still holding the left mouse button
Step 3: Move the cursor over the portion of the selected entities that you want to remove.
Step 4: The highlighted portion of the entities will be removed.

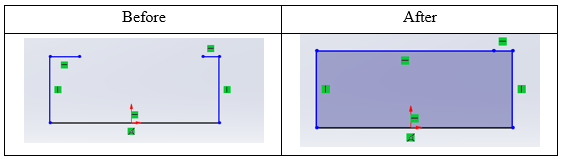

Step 1: Activate the Extend tool. It can be found in the Sketch toolbar or the Command Manager under the Modify section.
Step 2: Select the sketch entity you want to extend.
Step 3: Move the cursor towards the entity you want to extend towards, such as a line or an arc.
Step 4: Click on the entity you want to extend towards. The selected entity will be extended to intersect with the clicked entity.

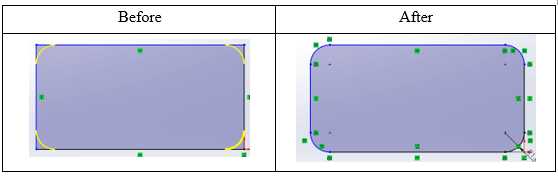

Step 1: Activate the Fillet tool. It can be found in the Sketch toolbar or the Command Manager under the Modify section.
Step 2: Select the corners where you want to add fillets.
Step 3: Specify the fillet radius by entering the desired value in the Fillet
PropertyManager or by clicking on the sketch entities to dynamically adjust the radius.
Step 4: Click OK or press Enter to apply the fillet to the selected entities.

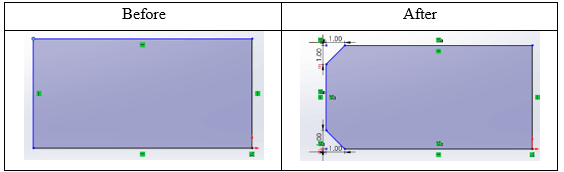

Step 1: Activate the Chamfer tool. It can be found in the Sketch toolbar or the Command Manager under the Modify section.
Step 2: Select the corners where you want to add chamfers.
Step 3: Specify the chamfer distance and angle by entering the desired values in the Chamfer PropertyManager or by clicking on the sketch entities to dynamically adjust the distance and angle.
Step 4: Click OK or press Enter to apply the chamfer to the selected entities.

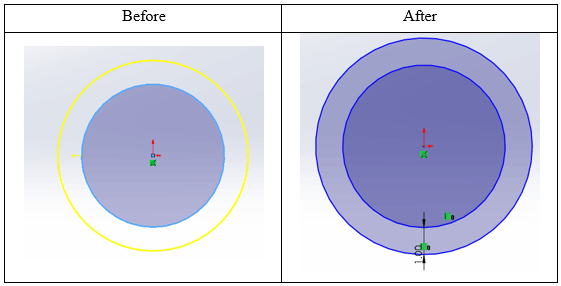

Step 1: Activate the Offset Entities tool. It can be found in the Sketch toolbar or the Command Manager under the Modify section.
Step 2: Select the sketch entities you want to offset. You can select multiple entities by holding down the Ctrl key.
Step 3: Enter the desired offset distance in the Offset PropertyManager. You can also click on the sketch entities or drag the blue arrow to dynamically adjust the offset distance.
Step 4: Choose the side of the original entities from which the offset entities will be created. You can select Inside, Outside, or Bi-directional offset options.
Step 5: Specify any additional options or settings in the Offset PropertyManager, such as creating construction geometry or merging the offset entities with the original entities.
Step 6: Click OK or press Enter to create the offset entities.

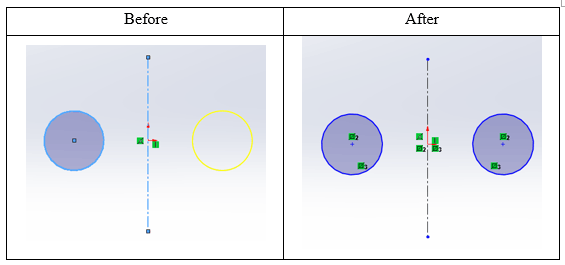

Step 1: Activate the Mirror tool. It can be found in the Sketch toolbar or the Command Manager under the Modify section.
Step 2: Select the sketch entities you want to mirror. You can select multiple entities by holding down the Ctrl key.
Step 3: Specify the mirror line or plane by selecting a line or a plane in the graphics area. The selected entities will be mirrored across this line or plane
.
Step 4: Optionally, you can choose to trim the original entities after mirroring by checking the "Trim Original" option in the Mirror PropertyManager.
Step 5: Click OK or press Enter to create the mirrored entities.

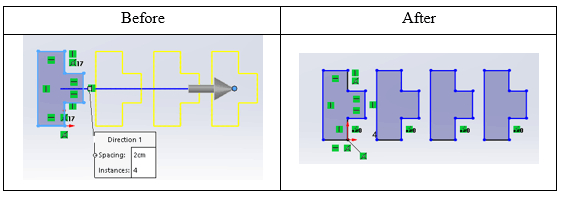

Step 1: Select the sketch entity or feature you want to pattern.
Step 2: Define the direction and distance of the linear path along which the copies will be created.
Step 3: Specify the number of instances or the spacing between instances.
Step 4: Optionally, you can specify an angle to rotate the patterned entities.
Step 5: SolidWorks will create the specified number of instances of the selected entity or feature along the defined path.

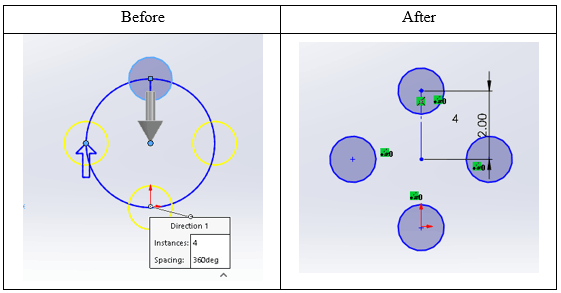

Step 1: Select the sketch entity or feature you want to pattern.
Step 2: Specify the center point around which the copies will be arranged.
Step 3: Define the number of instances or the angle between each instance.
Step 4: Optionally, you can specify an offset angle or rotation angle to rotate the patterned entities.
Step 5: SolidWorks will create the specified number of instances of the selected entity or feature arranged in a circular pattern around the defined center point.
