What is solidworks?

SolidWorks is a robust computer-aided design (CAD) program widely employed across several sectors to create and simulate 3D components, assemblies, and drawings. It offers designers, engineers, and technicians an extensive array of tools for creating, simulating, visualizing, and documenting their designs.

SolidWorks provides a user-friendly and simple interface that enables users to effortlessly generate and manage 3D models. The software utilizes a parametric modeling methodology, whereby modifications implemented in the design are instantly reflected throughout the whole model, guaranteeing design coherence, and minimizing mistakes.

SolidWorks encompasses a diverse array of design functions, such as drawing, 3D modeling, assembly, sheet metal design, surface, and more capabilities. Additionally, it effortlessly combines with other engineering applications, that include simulation and analysis tools, allowing users to authenticate and enhance their ideas.

Benefits of using solidworks in design and engineering

Easy to use: SolidWorks is renowned for its interface that is easy to use and its tools that are intuitive, which allows users with different levels of proficiency to easily access and utilize the software. The inclusion of drag-and-drop capabilities and intelligent snapping in its features optimizes the design process and boosts productivity.
Parametric modeling: SolidWorks utilizes parametric modeling, enabling users to generate designs by specifying geometric connections and restrictions. The utilization of a parametric method allows for rapid design iterations, since modifications made in one section instantly propagate across the entire model, resulting in decreased design time and enhanced precision.
Design Visualization: SolidWorks offers robust visualization capabilities that enable users to generate lifelike 3D representations and animations of their ideas. This feature enhances stakeholders' comprehension of the design concept and facilitates communication regarding design and presentations.
Design Validation: SolidWorks provides users with the ability to simulate and analyze their ideas, allowing them to test them digitally before creating physical prototypes. This technique aids in the identification of possible problems, the improvement of designs, and the guarantee of structural soundness, hence minimizing expensive mistakes and repetitive steps in the production procedure.

Terminology

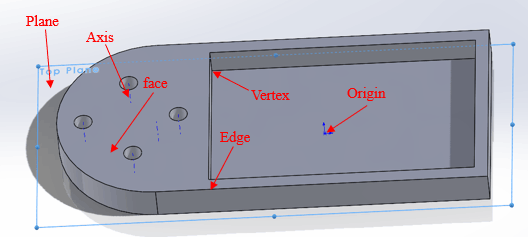

Origin: The origin in SolidWorks is denoted by the intersection of three lines representing the X, Y, and Z axes. These lines serve to establish the precise location and alignment of the model.

Plane: Flat surfaces utilized as points of reference for generating drawings or delineating characteristics. They assist in constructing both 2-dimensional and 3-dimensional components inside the model.

Axis: Straight lines that serve as a pivot point for the rotation or revolution of features or components. These components are utilized to establish symmetry or position.

Face: The planar facets of the 3-dimensional form, such as a face within a cube or a curved section. Boundaries are defined and utilized to implement features.

Edge: Edges formed by the intersection of two faces or by the intersection of one face with an open border. The limits of the model are established by these elements, which are utilized for the application of features such as fillets or chamfers.

Vertex: Points where numerous edges intersect. They serve as exact positions inside the model and are utilized as points of reference for establishing connections or dimensions.

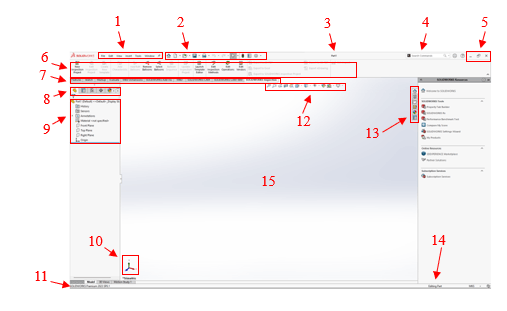

user interface

1 Main menu
2 Standard menu
3 file name
4 solidworks search
5 Min/max/close window
6 commandmanager
7 commandmanager toolbars tabs
8 feature/property/configuration manager
9 featuremanager design tree
10 reference triad
11 solidworks command description
12 view toolbar
13 task pane
14 solidworks status
15 graphic area

Menus, Toolbars, and the Command Manager

Aside from the default menus and toolbars, SolidWorks provides users with the ability to personalize the interface according to their individual tastes. Users could generate personalized menus or toolbars that encompass their commonly utilized commands or tools. This tweak optimizes the process and enhances efficiency.

The Command Manager is specifically developed to offer a user interface that adapts to the current environment. The Command Manager dynamically adjusts to show the appropriate tabs and tools for the individual modeling work when users transition between activities. This functionality enables users to concentrate on essential tools and minimizes visual distractions on the screen.

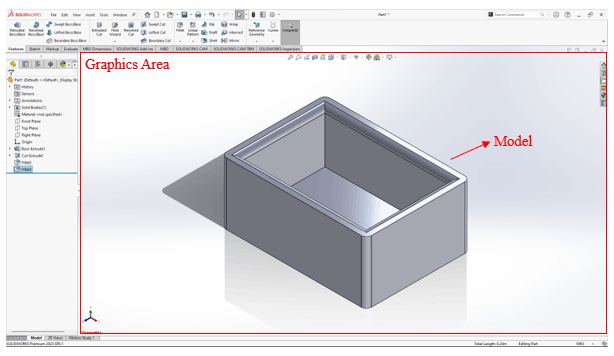

Graphics Area

The graphics area serves as the primary workspace in SolidWorks, showcasing the 3D model and its corresponding views. It offers a graphical depiction of the model, enabling users to alter and see it from various perspectives.

Users have the ability to manipulate the graphical area by rotating, zooming, and panning, allowing for a detailed examination of the model. In addition, the graphics section offers many display options, including shaded, wireframe, and concealed lines, to improve the presentation of the model.

Property Manager

The Property Manager is a panel located on the left side of the SolidWorks window. It provides a display of the properties and parameters of the selected entities inside the model. The interface is context-sensitive, which means that the available options vary depending on the selected feature or item.

Through the Property Manager, users have the ability to alter the size, materials, appearances, and other attributes of the selected entities. It enables meticulous manipulation and personalization of the model's characteristics.

Comprehending and proficiently utilizing these elements of the SolidWorks user interface is essential for optimizing modeling and design. They offer users the ability to utilize instructions, tools, and information, facilitating smooth navigation and interaction with the program and model.

Feature Manager

The Feature Manager is a panel located on the left side of the SolidWorks window, which presents the hierarchical structure of the model's features. The software offers a hierarchical representation of the components utilized in constructing the model, including drawings, extrusions, cuts, fillets, and so on.

The Feature Manager provides users with a convenient means to readily access and alter distinct aspects inside the model. Users have the ability to extend or collapse feature branches, rearrange features, and modify their parameters. It functions as a record of the model's inception, allowing users to modify previous attributes, which in turn immediately update succeeding attributes.

Rotate the view

To change the orientation of the view, you have the option to utilize any of the below techniques:

I. Utilize the arrow keys on the computer to rotate the view in small increments.

II. Press and hold the middle mouse button (scroll wheel) and move the mouse.

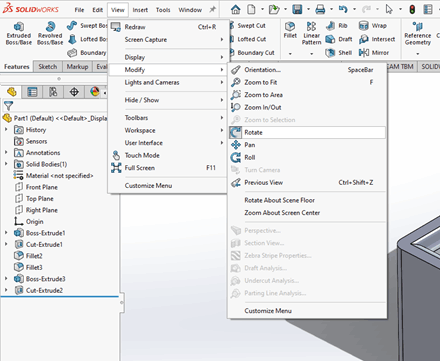

III. Choose the "Rotate View" tool from either the View menu and then just move the pointer.

Zoom In/Out

There are several ways to zoom in and out of the graphics area:

I. Scroll the middle mouse button forward or backward to zoom in/out.

II. Hold “Shift” key and the middle mouse button, then drag the cursor up/down to zoom in/out.

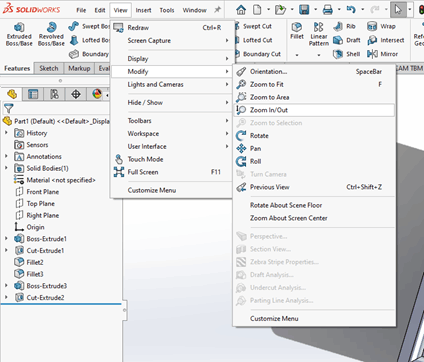

III. Select the "Zoom" tool from the View menu and drag the cursor up to zoom in or down to zoom out.

Pan the view

Panning enables the user to shift the perspective either horizontally or vertically while maintaining the current zoom level. Here is the method to pan the view:

I. Hold down the "Ctrl" key on the keyboard and click and hold the middle mouse button (scroll wheel) while moving the mouse to pan the view.

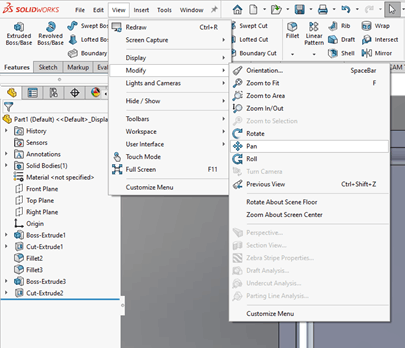

II. Choose the "Pan" tool from either the View menu and then drag the cursor

standard view

SolidWorks offers predefined views to rapidly align the model. To access these views, utilize the following methods:

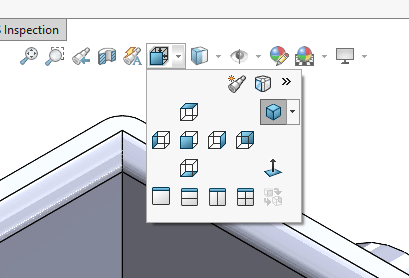

I. Choose the preferred view from the "View Orientation" toolbar. Standard views include Front, Back, Top, Bottom, Right, Left, Isometric, and more options.

II. Press the spacebar and choose the preferred view.
